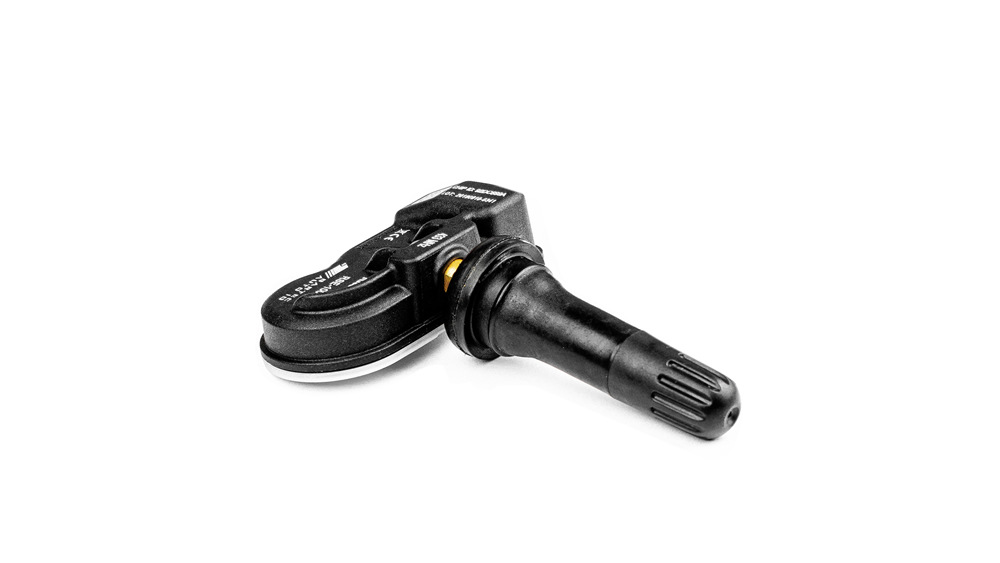

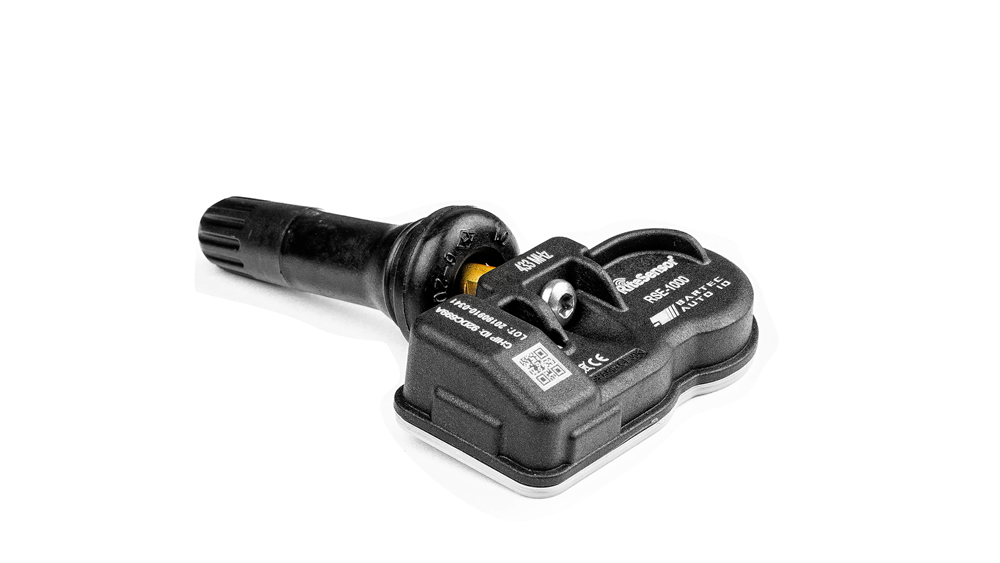

Rite-Sensor® RS1000 TPMS Sensor
The Bartec Rite-Sensor® RS1000 is a universal programmable TPMS sensor designed as an aftermarket replacement for compatible Direct TPMS applications. Using a single sensor part number across an extensive range of vehicle applications can help professional tyre shops and garages reduce stock requirements and simplify TPMS sensor replacement.

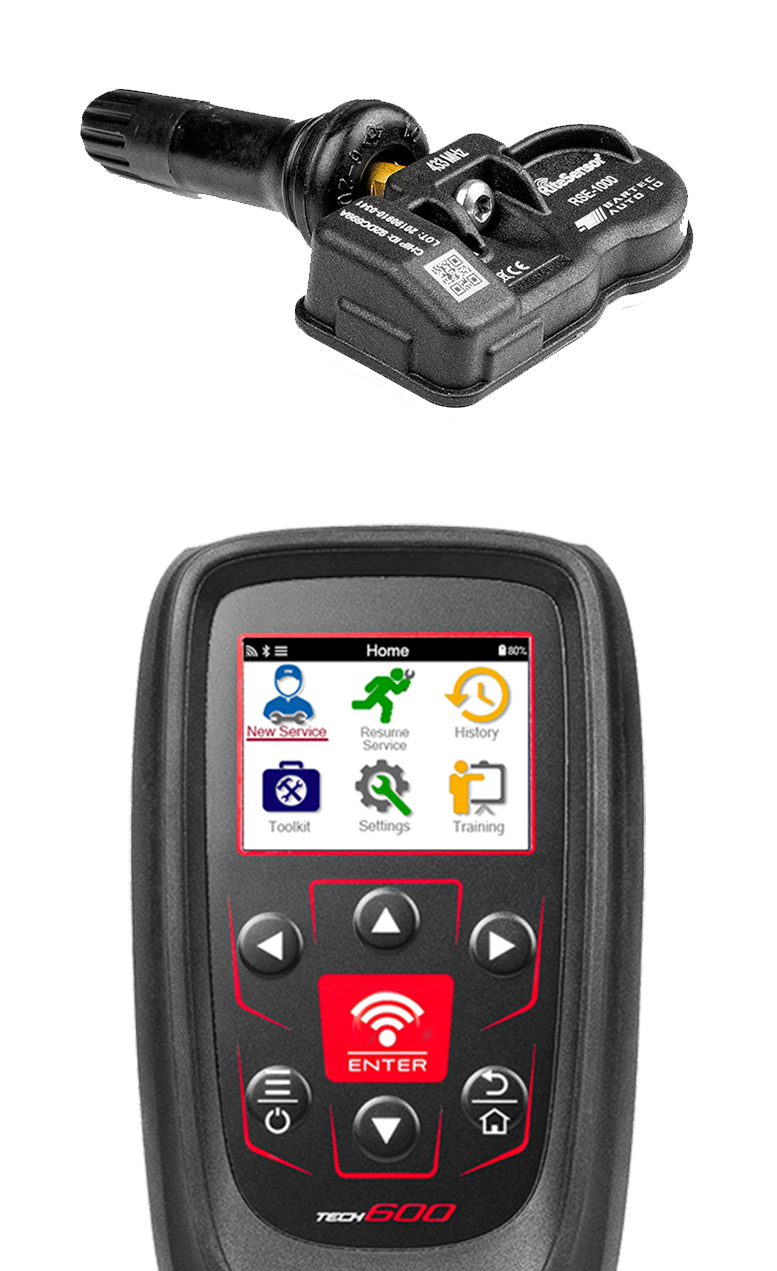

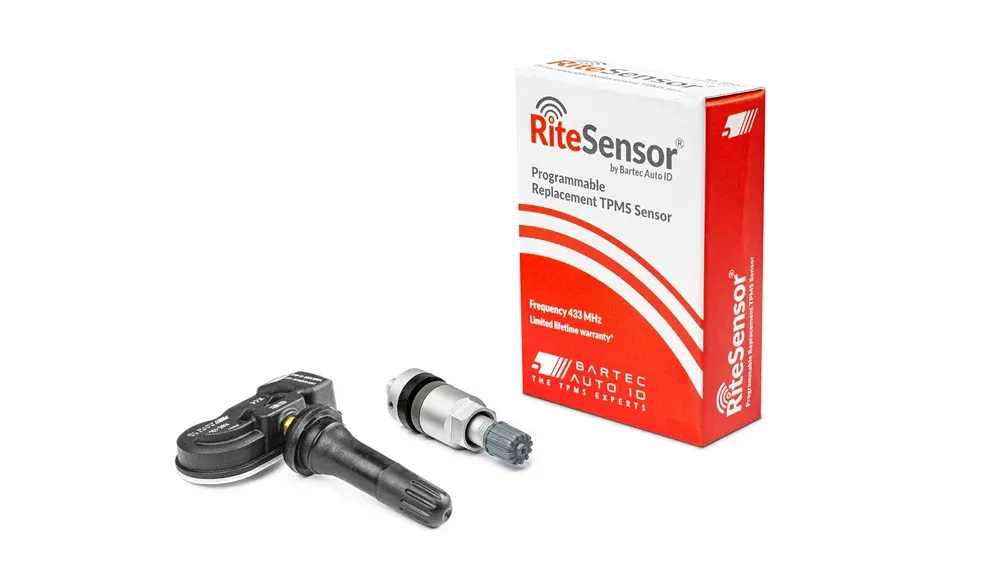

Rite-Sensor® comes assembled with a rubber snap-in valve, with an optional aluminium clamp-in stem included. The sensor is programmed for the required vehicle application using suitable TPMS programming equipment. Bartec's TECH350, TECH450 and TECH600 TPMS tools support programming of the Rite-Sensor®.
Rite-Sensor® RS1000 TPMS Sensor Features
- Nut torque: 35.4 in-lbs
- Screw torque: 12.39 in-lbs
- Frequency: 433 MHz
- Sensor valve is warranted for 24 months
- Dimensions: 83 x 56 x 24 mm
- Weight: 52g

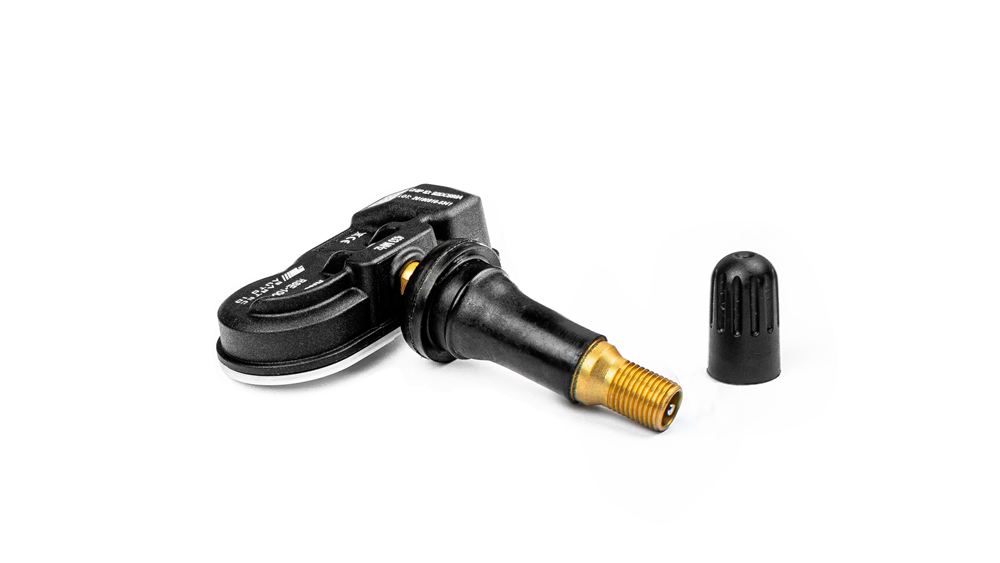

- Rite-Sensor® comes assembled with a rubber snap-in valve

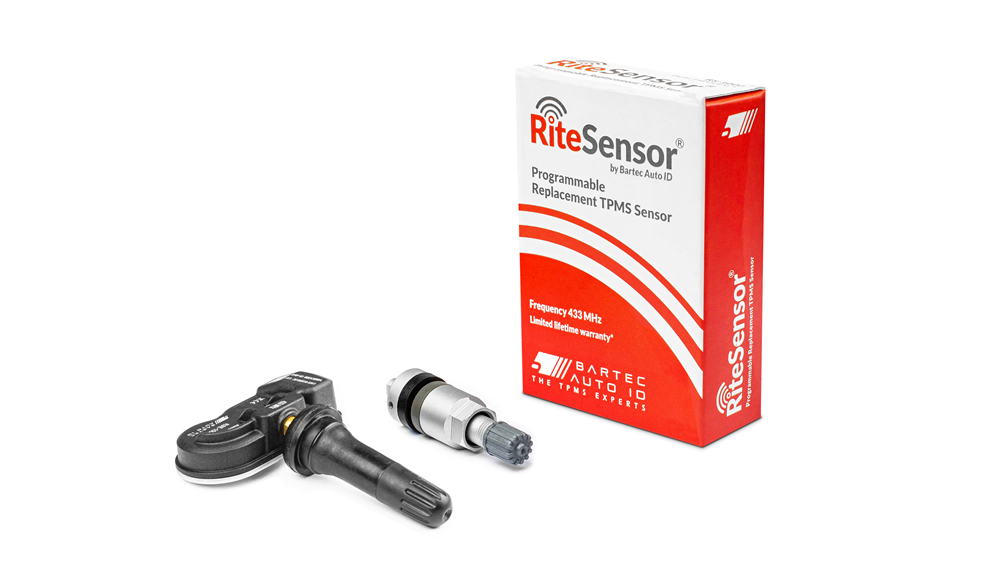

- Optional aluminium clamp-in stem included (assembly required)
- Designed for compatibility with OE and aftermarket wheels with no adjustment necessary

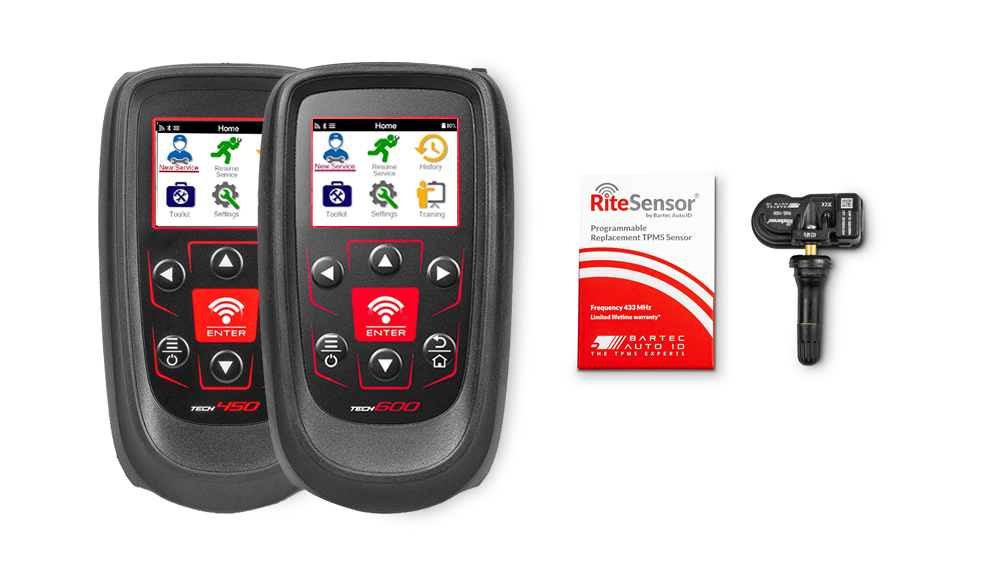

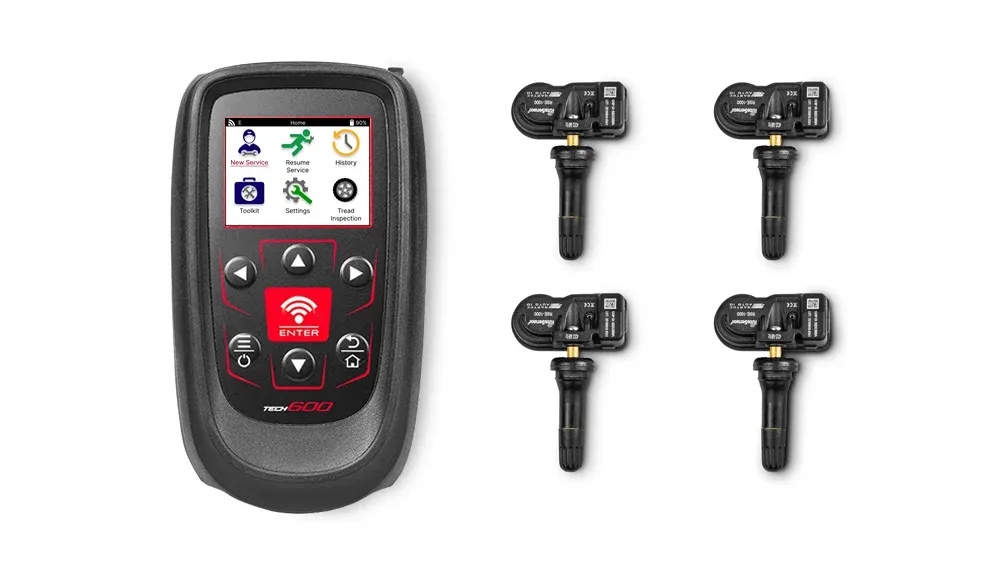

- Supported by Bartec TECH350, TECH450 and TECH600 TPMS tools
- Single sensor part number helps reduce workshop stock requirements
- Extensive vehicle coverage across compatible Direct TPMS applications
- One universal sensor price can help workshops offer consistent fitting prices
- Helps simplify TPMS sensor replacement and reduce workshop stock complexity
- Rite-Sensor® must be programmed for the specific vehicle application before use
Don't Forget
To get the most from your new TPMS tool, register your tool, download the TPMS Desktop app and update your TPMS tool.
Assembly

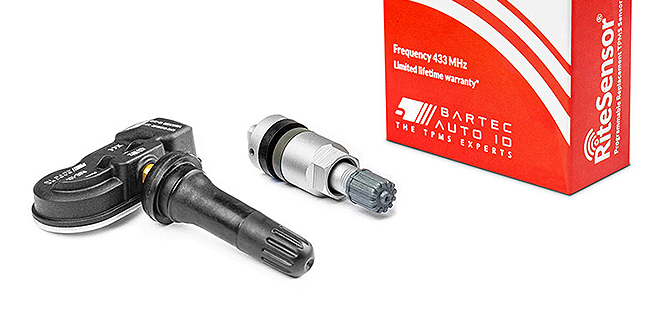

The Rite-Sensor® comes assembled with a rubber valve stem. In some applications, the aluminium valve stem may be required. First remove the rubber valve stem by unscrewing the fastener. Insert the aluminium stem into the sensor. Insert the anti-rotation pin into the hole at the base of the stem, just above the sensor body. Insert a NEW fastener into the stem and torque to 35.5 in-lbs (4Nm).

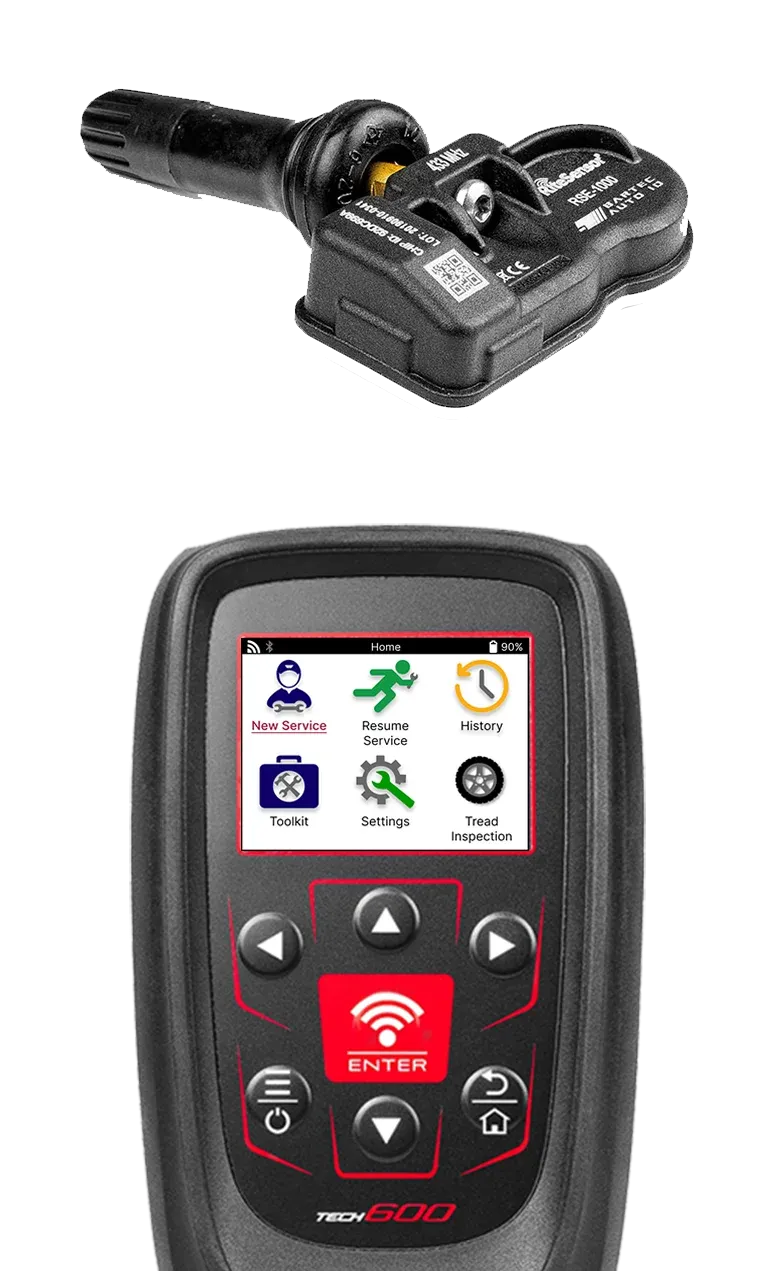

Programming
The Rite-Sensor® needs to be programmed BEFORE use. To program the Rite-Sensor® for the specific year, make and model being serviced, follow the instructions on your Bartec TECH600, TECH450 or TECH350 TPMS service tool. It is important to use the precise vehicle application information to accurately program your Rite-Sensor®.
