TAP200 Tread & Tyre Pressure Testing Tool
Overview

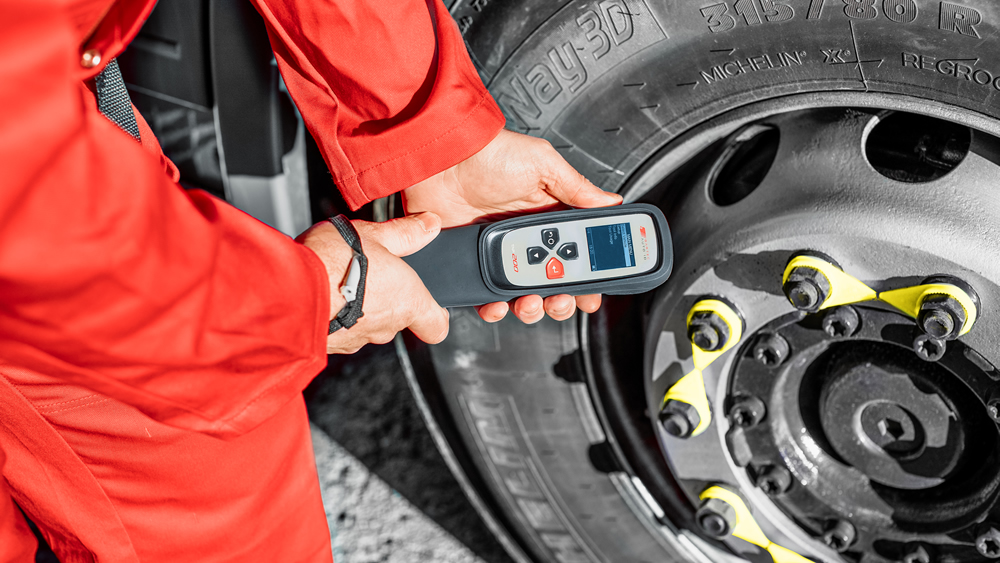

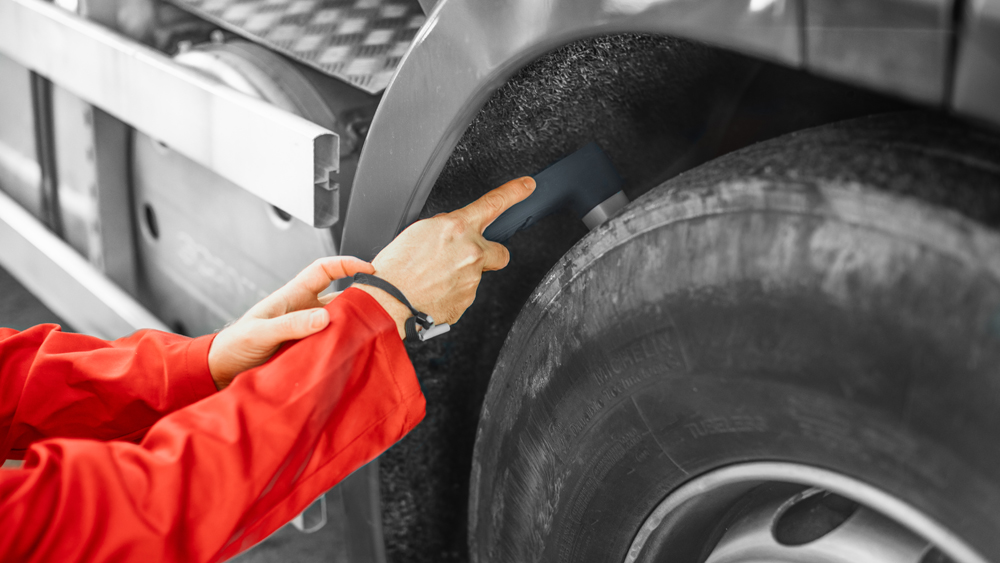

Designed for COMMERCIAL VEHICLES AND FLEET INSPECTIONS, the TAP200 integrated hand held Tread Depth and Pressure tool with colour display. Easy-to-use colour coded graphics with Bluetooth communications to Bartec’s FREE TPMS Desktop software package.

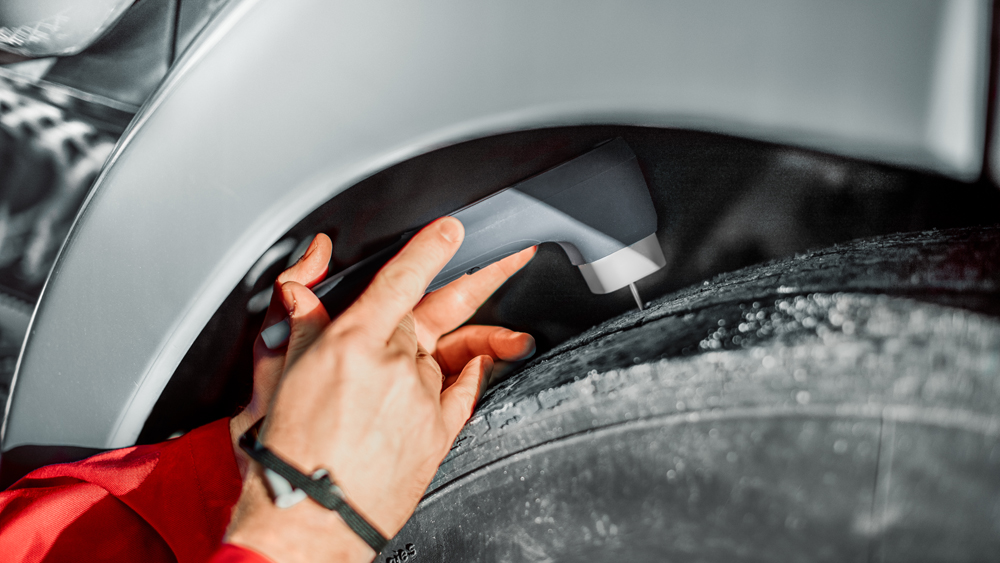

The TAP (Tread & Pressure) Reader is designed to give fast accurate results. It can eliminate the paperwork involved in collecting data and reporting the results to the customer. Using a colour coded warning system the tool shows when tyres are legal and when replacement is recommended. The highly accurate tool enables the tyre shop to advise the customer how long they can keep running their tyres before replacement is needed, thereby maximising tyre life and offering real value to the customer.
The results of the tread and pressure test can be uploaded via Bluetooth to a PC or tablet so that the colour coded warnings can be displayed for the customer thereby reassuring them of their legitimacy. This leads to increased tyre and parts sales, and customer retention.
TAP200 Features

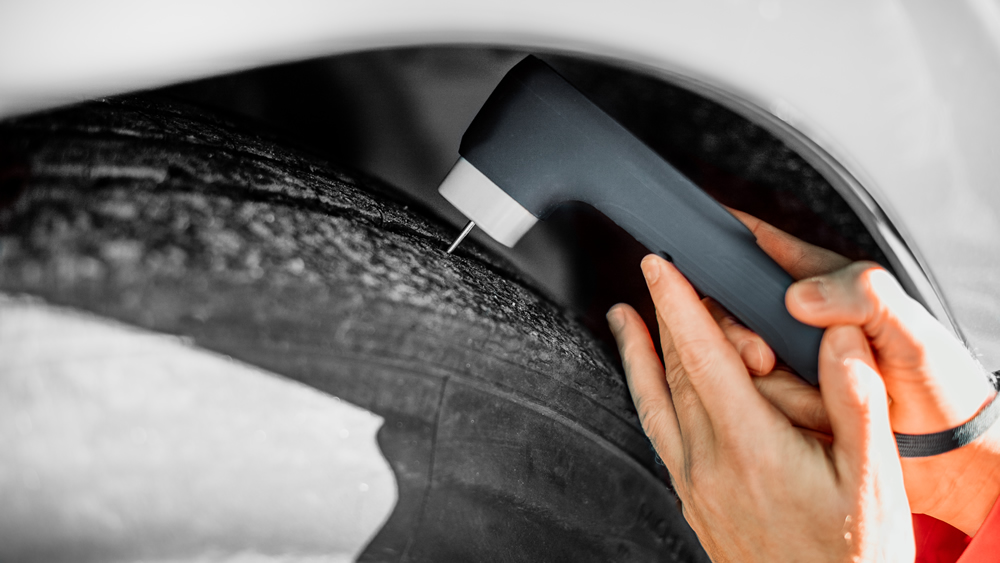

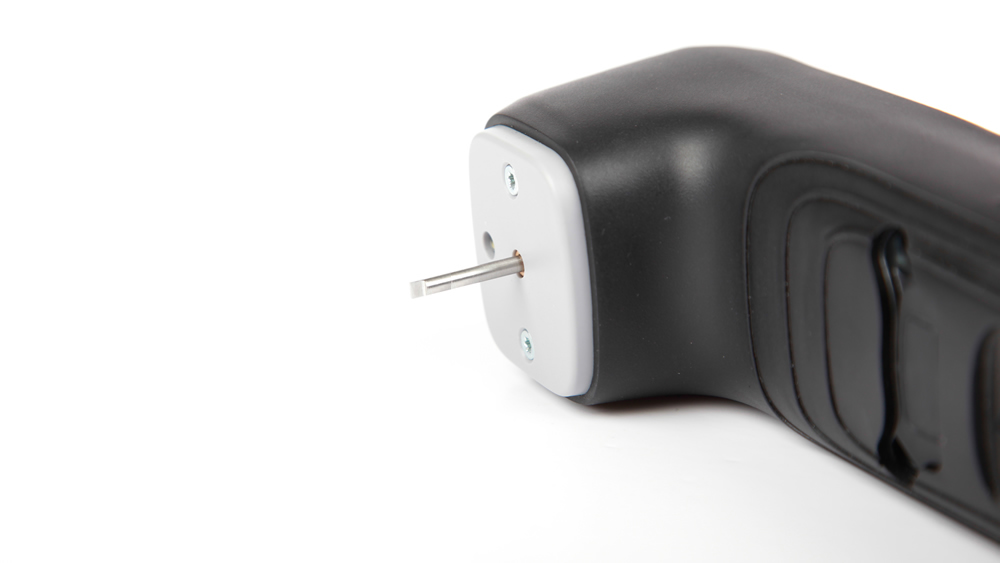

- 25mm replaceable steel pin with profiled end

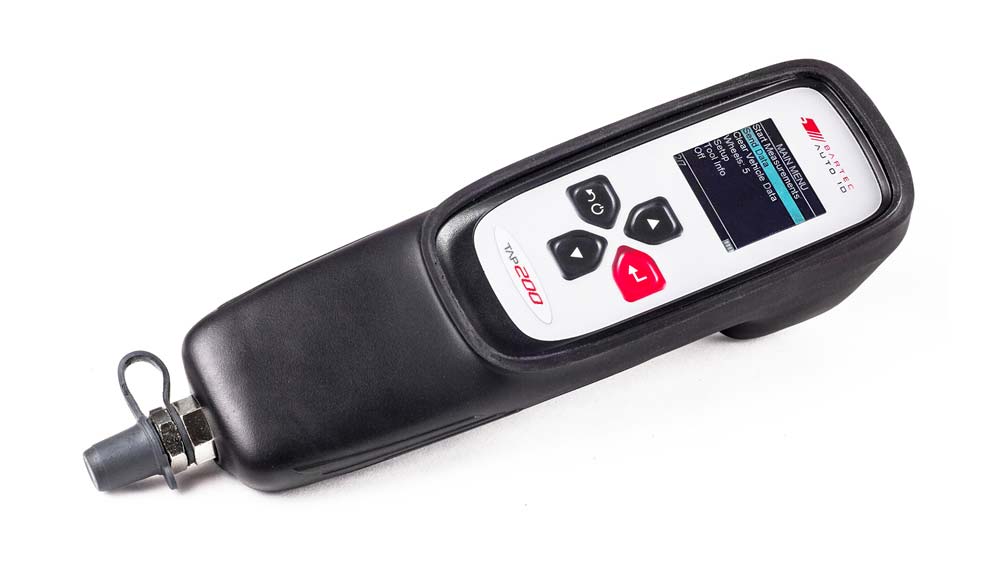

- High resolution, sunlight readable, 1.6” colour graphics display 240 x 240 pixels

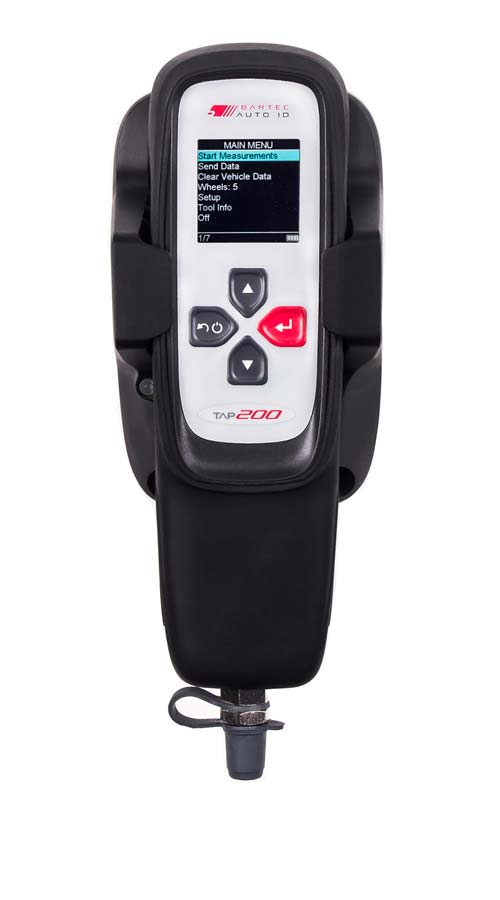

- Simple, intuitive, menu-driven software
- Rugged ABS/Polycarbonate enclosure resistant to automotive fluids
- Rated IP54 for water and dust ingress

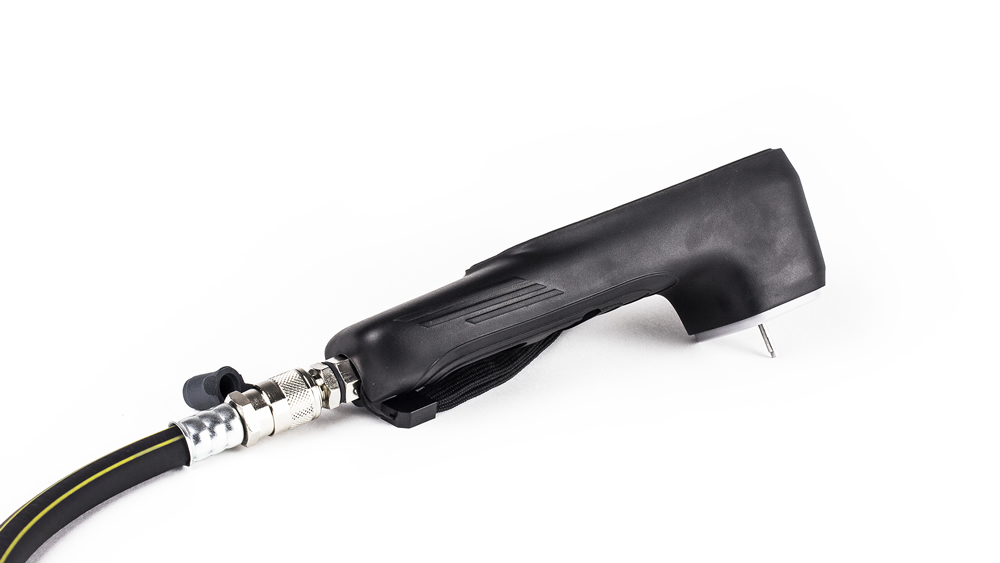

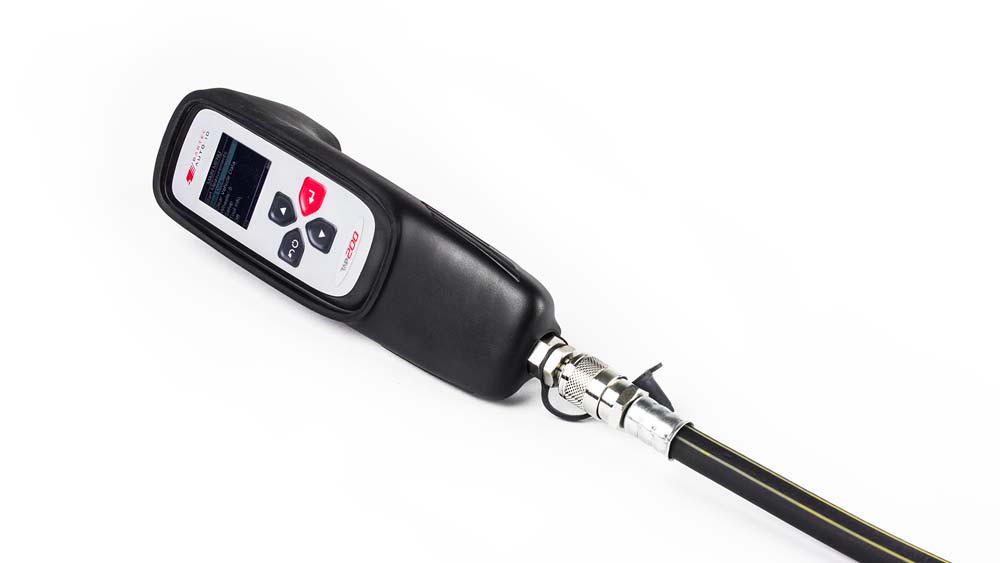

- Quick release lightweight pressure hose
- Built in electronic pressure gauge
- Rechargeable Lithium battery – wireless charging

Technical Specification
- 25mm steel depth pin with profiled end to meet regulations
- Silicone rubber boot for added protection
- Maximum tread depth 25mm
- 0.01mm accuracy version for UK MOT testing – EINYA19863-0717005
- Pressure range 0-10bar (0-150PSI)
- Pressure accuracy +/-0.07bar (+-1PSI)
- Bluetooth for wireless data transfer
- Wireless charging
- Operating temperature 0 to 40°C

- Built in lamp for illuminating tyre surface
- High resolution colour display, sunlight readable
- Tread depth and pressure in one tool can capture up to 7 wheels
- No need to connect to another tool, Bluetooth communications
- Colour screen for displaying legal and recommended replacement status
- Red-amber-green intuitive user interface
- Works with TPMS Desktop offering data management, TPMS information & software updates
- Lamp highlights tread wear pattern and damage
