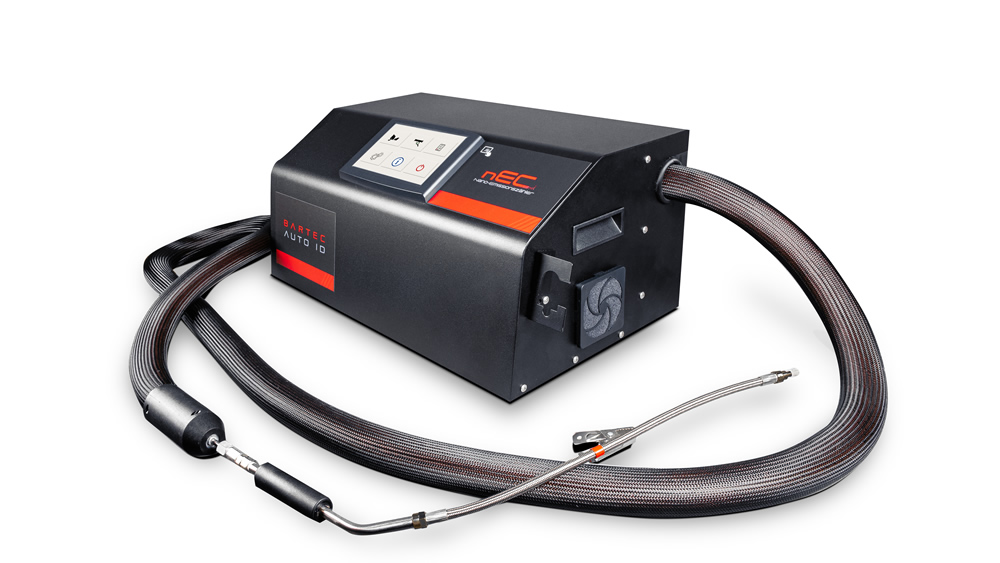

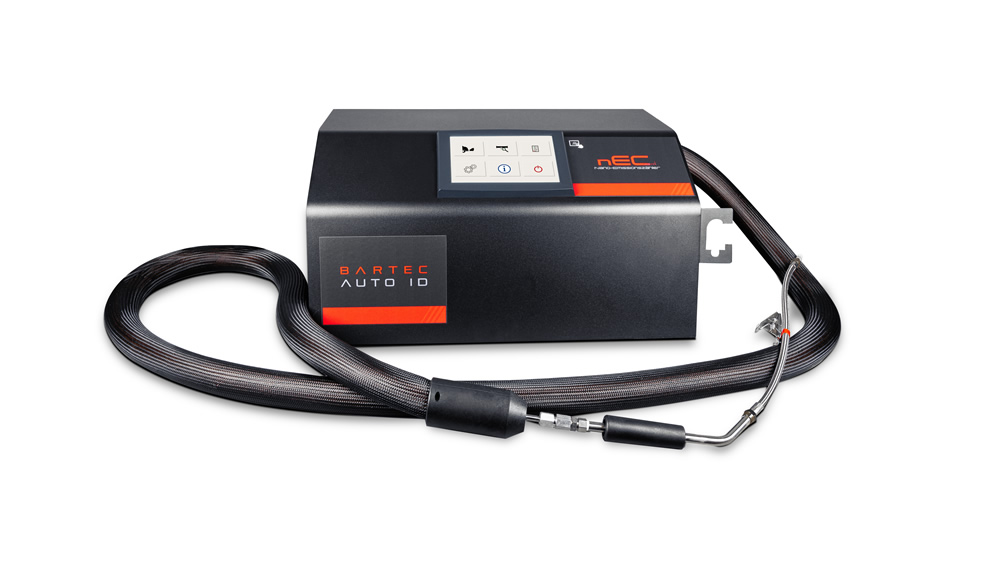

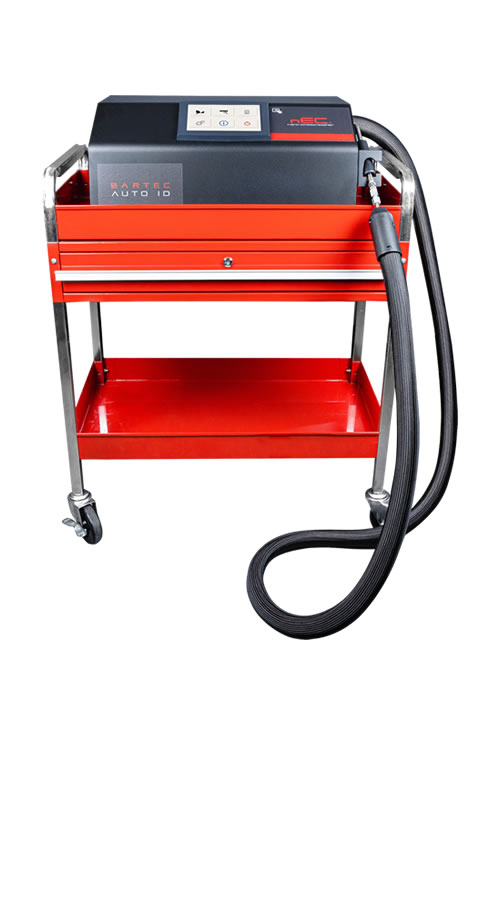

Bartec nEC

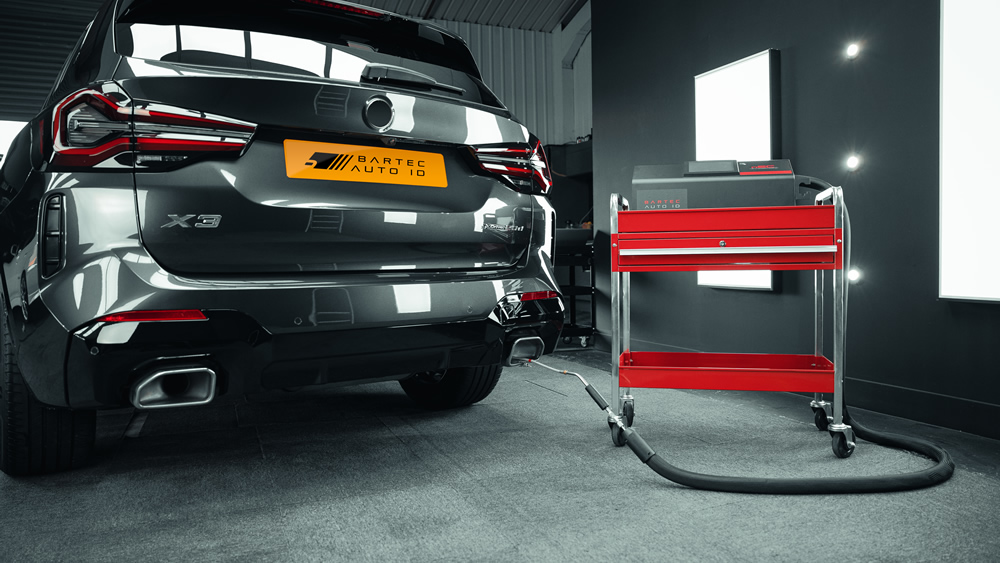

Thanks to Advanced Diffusion Charging Technology, the Bartec Particle Counter nEC is your reliable partner for particle number measurement in vehicles first registered with wall flow DPFs.
Based on 28 years of experience in the field of diagnostic equipment, Bartec has once again developed a reliable, precise and robust device for everyday workshop use.
In contrast to other technologies (CPC), using inflammable & toxic operating fluids can be avoided. Short warm-up and response times as well as almost maintenance-free operation with no calibration required make the Bartec particle counter nEC the perfect diagnostic device for everyday workshop use.
Bartec nEC can be converted for petrol vehicles.
Bartec nEC Features

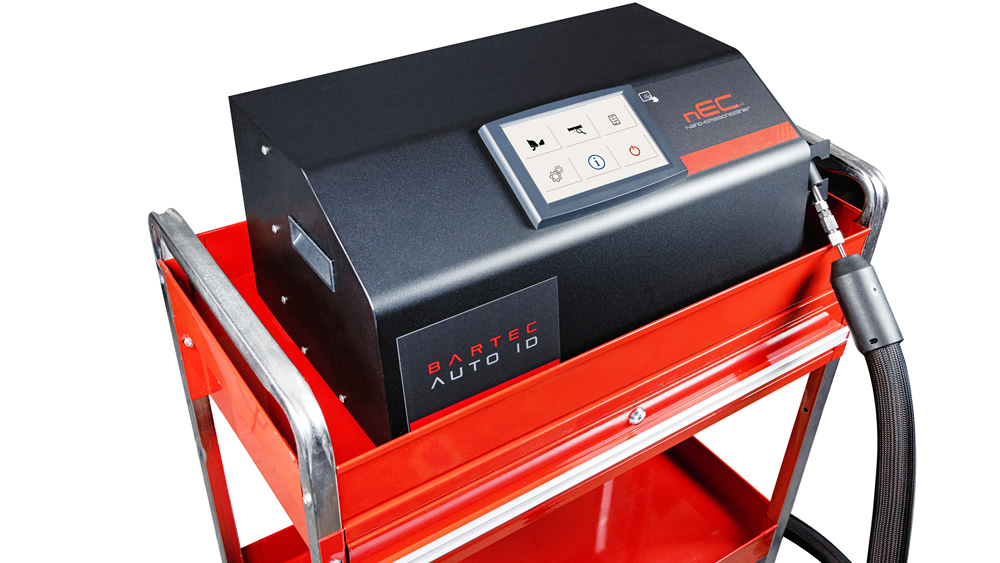

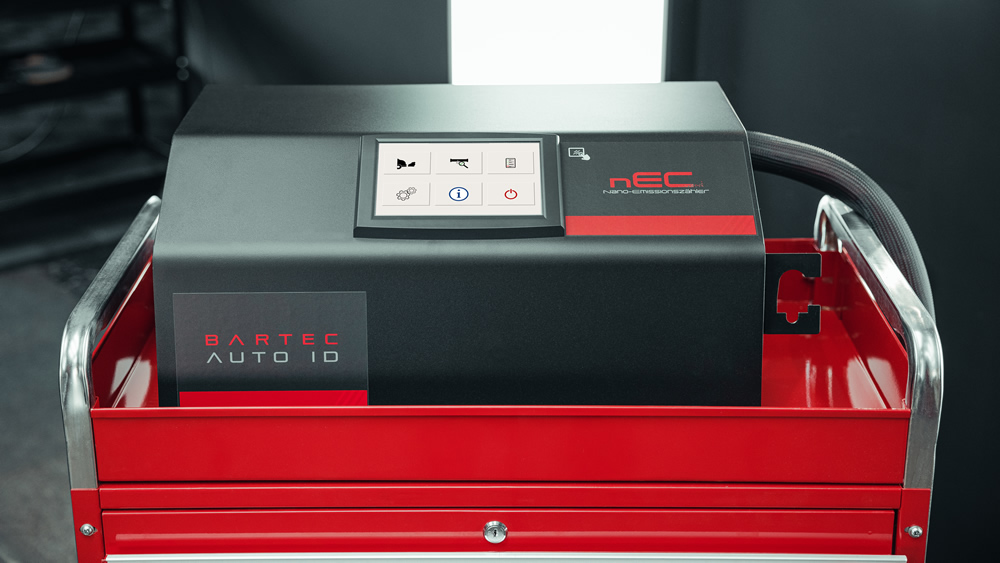

- Intuitive operation via touchscreen
- Automated test protocol in line with legislation plus full emissions diagnostics
- Smart test function (zero air test)
- Wireless OBD allows measurement of RPM and Engine Temperature
- Automatic daily leak test, filter and calibration reminders
Technology
- Proprietary particle sensor technology from the most experienced in the market
- Data management via USB or Ethernet/WiFi for PDF results download
Technical Data & Approvals
- Technical Data
- Particle size: 23 - 200nm
- Warm-up time: <3min
- Dimensions: 550mm x 350mm x 260mm
- Weight: approx. 16kg
- Measurement range: 5.000 – 5.000.000 /cm³
- Approvals
- METAS - (SWISS) CH-K4-23008-00 (Approved)
- PTB - (Pending)
- NMi - T9040 (Approved)

- Performance
- Short warm-up time
- Low maintenance without the need for recalibrations
- Limited consumables (no fluids required), only filter replcement
- Minimal maintenance
- Service
- Scheduled maintenance and repair
- Well-defined service intervals
- Simple maintenance directly in the workshop by workshop staff (3min effort)
- All-around support: from support hotline and technical service to our own training centre
